Cover Your Pergola | SKU:
Hercules Premium Pergola Covering Kit
EXCLUSIVE SAVINGS
Tax Included
Hercules Premium Pergola Covering Kit - is backordered and will ship as soon as it is back in stock.
Secure Quote & Pay
Quote? 832-509-5009 or Chat Now
Installation Service
Installation Service
Current, our installation service area covers the Greater Houston and Dallas–Fort Worth, TX regions. More locations are coming. Check detail Here >>>
No Fees & Contractor Welcome
No Fees & Contractor Welcome
- We beat any online price, Period!
- Credit card payments incur no additional processing fees.
- Further discounts may apply for check or ACH payments.
- We work with contractors and offer highly competitive pricing
Shipping & Lead Time
Shipping & Lead Time
- Free Curbside Delivery (48 States)
- Base on location, some customer will receive 2 deliveries including LTL and UPS.
- Branch Pickup (TX, CO, OK, FL)
- Delivery: 1- 2 Weeks.
- Local Freight Terminal Pickup: 1-2 Weeks
- Branch Pickup: As early as next business day
Click to see how independent organizations rate Dive To Shade.
125 MPH
Wind Resistance
40 PSF
Snow load
Full pergola Hurricane-resistant covering kit which includes 8mm 4-wall panels, H-Channels, screws, and all parts you need. Not just the panel.
Unlike basic plastic roofing panels that can yellow, leak, crack, or require frequent replacement, the Hercules System is designed as a complete architectural-grade roof solution built for long-term outdoor performance. Invest once and enjoy a cooler, drier, and more comfortable outdoor space for years to come.
The Hercules is a standing seam system. The main idea for standing seam systems is that the fastener is hidden, whether the panel is attached to the roof deck using a clip or is directly fastened to the decking material under the vertical leg (fastener flange).
Length: 12', 16', 20' 24' and 36' (Custom lengths available)
System Included:
Sold by per SQ.FT. Need to customize the size, Please contact us.
-
Panel
-
Light Trans
-
Frame
-
Wind Resistance (mph)
-
Snow Load (psf)
-
Wide23.63 in
-
Pre-Cut Length
-
Warranty (yr)
-
Made in
-
Guarantee Leakproof
3 Colors Available
-
Tinted Bronze
Most popular color to reduce light and heat with good view.
-
Translucent Clear
Full transparent option for no need temperature reduction. Good for Pacific Northwest area.
-
Ice White
King of heat blocker. goof fit for aluminum pergolas with modern backyard touches.
FAQ

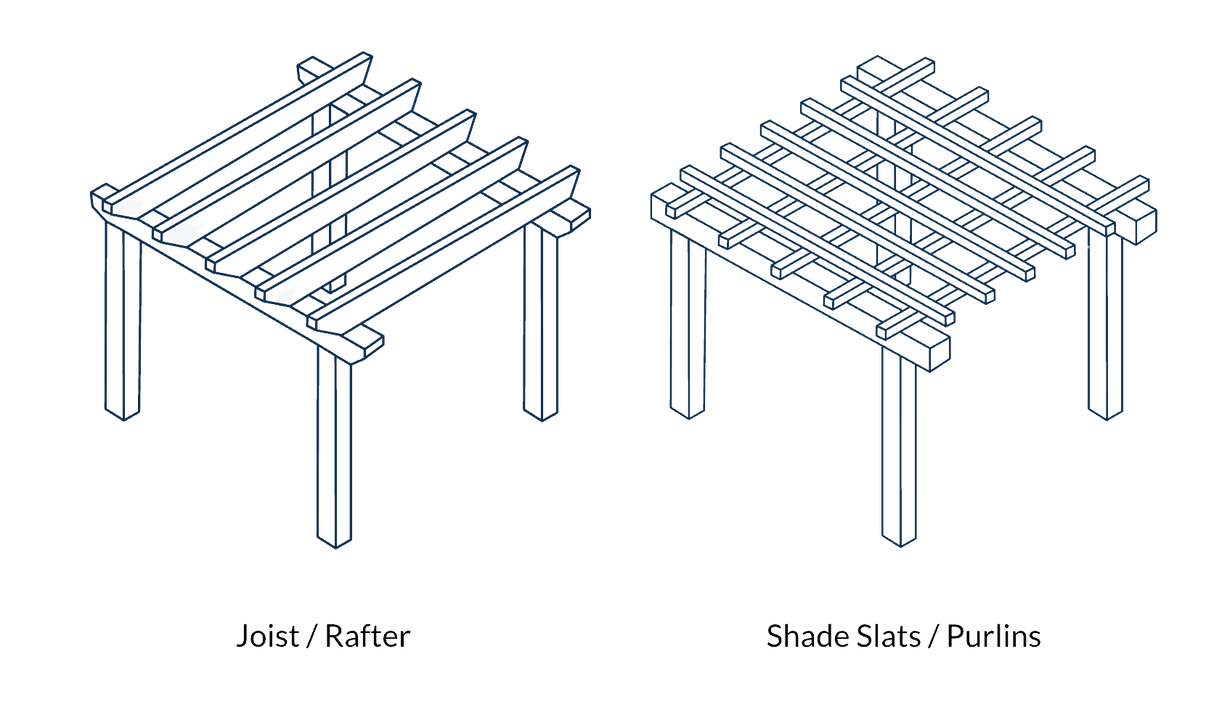

What is the difference between rafters and shade slats (purlins)?
What is the difference between rafters and shade slats (purlins)?
- Rafters are the larger, primary boards that form your pergola's main structure, providing its overall strength and shape.
- Shade Slats (Purlins) are the smaller boards running across the top of the rafters to add extra shade and a finished look.
What are pergola requirements?
What are pergola requirements?
To maximize the performance of your Apollo System, a slight slope is required. We recommend a minimum 4% slope, which equates to a 1-inch drop for every 24 inches of length.
How to add slope to your pergola？
How to add slope to your pergola？
If your pergola roof is flat, lateral shims offer an easy way to add the necessary slope for proper water runoff and optimal Apollo system performance.
What is your Snow Load recommendations?
What is your Snow Load recommendations?
The Hercules System is rated for snow loads up to 50 PSF when purlins are spaced 23″ or less. For comparison, most home roofs are rated between 20–30 PSF.
What is your Wind Safety recommendations?
What is your Wind Safety recommendations?
The Hercules System is rated to withstand wind speeds up to 139 mph when installed correctly. For best performance, make sure your purlins are spaced less than 19″ apart and the cover is secured to the structure with screws (not nails).
How to Modify Your Pergola
-
Slope + Rafters Only
To prepare your structure for installation, you can either install purlins over the rafters or add blocking between them. Both methods are equally effective, so choose the one that matches your design preference. We advise against moving the existing rafters; over time, rafters can sag or bow, and adding purlins or blocking provides necessary structural reinforcement. Furthermore, shifting rafters can split or damage the wood, potentially requiring costly replacements.
-
No Slope + Rafters Only
To create the necessary pitch for your system, we highly recommend using lateral shims. These function similarly to shade slats or purlins by running perpendicular to your rafters. By gradually decreasing in height, they easily and effectively build the slope your roof cover requires, ensuring a simple and hassle-free installation.
-
No Slope + Purlins
To build the correct pitch for your cover, you can utilize either lateral shims or doorstop shims. Both methods are highly effective at creating the required slope—the choice simply comes down to your visual preference for the finished look.
Get Quote
| Facet | ||
|---|---|---|
| Wall Type | ||
| Wall Type | ||
| WR (mph) | ||
| WR (mph) | ||
| Leak Proof Guarantee | ||
| Leak Proof Guarantee | ||
| Wide Per Piece | ||
| Wide Per Piece | 4 ft,
6 ft
| 23.63 in
|
| Warranty (Yr.) | ||
| Warranty (Yr.) | ||
